| hexagonal wire netting |
 |
| |
Hexagonal wire netting is also known by the name of chicken mesh.
Wire materials: Galvanized iron or PVC coated wire.
Application: Hexagonal wire netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
|
| |
|
| |

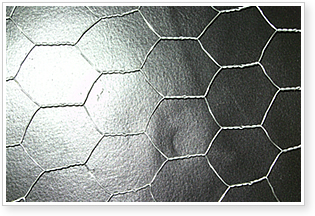

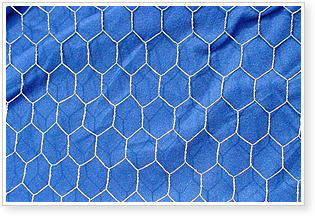

Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) |
Mesh |
Wire Gauge (BWG) |
Inch |
mm |
3/8" |
10mm |
27,26,25,24,23,22,21 |
1/2" |
13mm |
25,24,23,22,21,20, |
5/8" |
16mm |
27,26,25,24,23,22 |
3/4" |
20mm |
25,24,23,22,21,20,19 |
1" |
25mm |
25,24,23,22,21,20,19,18 |
1-1/4" |
32mm |
22,21,20,19,18 |
1-1/2" |
40mm |
22,21,20,19,18,17 |
2" |
50mm |
22,21,20,19,18,17,16,15,14 |
3" |
75mm |
21,20,19,18,17,16,15,14 |
4" |
100mm |
17,16,15,14 |
|
| |
Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) |
Mesh |
Wire Gauge(BWG) |
Reinforcement |
Inch |
mm |
(BWG) |
Width(ft) |
Strand |
1" |
25mm |
22,21,20,18 |
2' |
1 |
1-1/4" |
32mm |
22,21,20,18 |
3' |
2 |
1-1/2" |
40mm |
20,19,18 |
4' |
3 |
2" |
50mm |
20,19,18 |
5' |
4 |
3" |
75mm |
20,19,18 |
6' |
5 |
|
| |

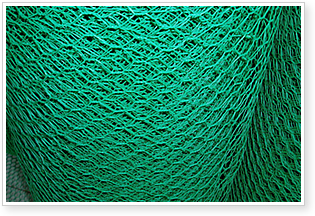

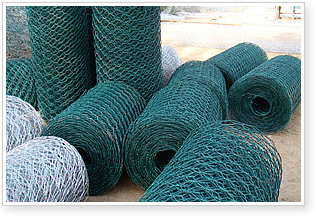

Hex. wire netting PVC-coated (width of 0.5M-2.0M) |
Mesh |
Wire Dia(mm) |
Inch |
mm |
1/2" |
13mm |
0.9mm,0.1mm |
1" |
25mm |
1.0mm,1.2mm,1.4mm |
1-1/2" |
40mm |
1.0mm,1.2mm,1.4mm,1.6mm |
2" |
50mm |
1.0mm,1.2mm,1.4mm,1.6mm |
|
|
| |
|
|
